Description

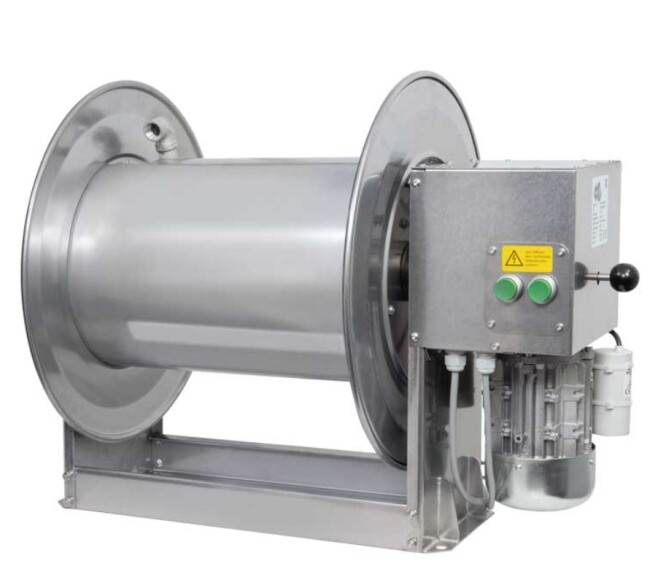

Electric high-pressure hose reel stainless steel 100 meters 12 volt is the solution for PV and façade cleaning work if you want and need to cover long distances with high-pressure hoses!
This high-quality professional part made of stainless steel comes with space for up to 100 meters of high-pressure hose (supplied without hose!) and a 1/2" internal thread for the connection of your choice and can unroll and roll up hoses that lie horizontally on the ground!
The robust base frame is made of folded sheet steel profiles and guarantees maximum stability and durability thanks to the use of stainless steel. The reel has an almost closed sheet steel hub and runs in maintenance-free plastic bearing bushes.
It is driven by a robust geared motor with a manual sliding clutch. Two manual buttons allow the reel to rotate either clockwise or counter-clockwise. The hose is unwound either by motor or manually after disengaging the motor using the sliding clutch.
A radio remote control is available as an option, which allows the motor to be controlled from a distance of up to 120 m.
Special features
- The base frame is made of folded sheet steel profiles and guarantees maximum stability.
- For horizontal winding above the floor.
- The drum has an almost closed sheet steel hub and runs in maintenance-free plastic bearing bushes.
- Easy operation thanks to electric drive and remote control (optionally available).
- Drum can be separated from the drive thanks to sliding clutch
- Right/left rotation can be controlled via buttons
Technical data
- Material: stainless steel,
- Weight: approx. 26 kg
- Dimensions (LxHxW): 52 x 93 x 46 cm (incl. swivel joint)
- with 12 V electric motor
- up to 300 bar
- up to 90° water temperature
- IP class IP44
- 0.25 KW Power consumption
- 37.5 rpm
- Connection: 1/2" female thread
Scope of delivery
- 1 x Electric high-pressure hose reel stainless steel 100 meters 12 volt
