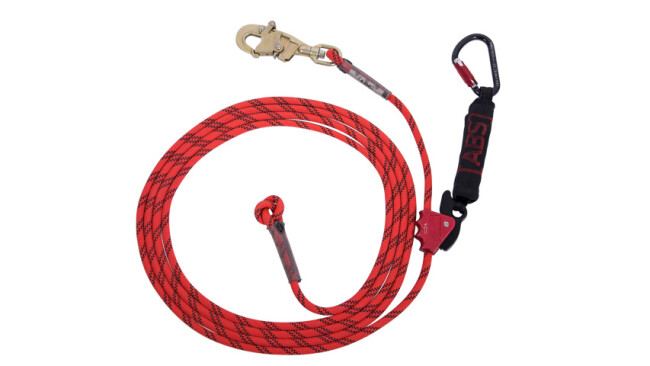

ABS lanyard - lanyard 10 meters

  • Item number: 300-002
  • GTIN: 4255636906325
  • moving fall arrester incl. movable guide
  • Edge-tested kernmantel rope (Ø 12 mm) with rope shortener & shock absorber
  • max. load capacity: 140 kg
  • incl. 2 x snap hooks
  • 10 meter length
Länge wählen
167,00 €
excl. 19% VAT. , plus. Shipping

Description

ABS lanyard - lanyard 10 meters: This high-quality fall arrester should not be missing from your personal fall protection equipment (PPE). It is the essential link between the respective fall protection system and the harness to be worn on the body.

ABS Safety's traveling fall arrester including movable guide (in accordance with DIN EN 353-2 and DIN EN 358) is based on a robust, durable kernmantel rope, a manually operated rope shortener and a high-quality energy absorber.Lanyards of the type "ABS Lanyard - assisted fall arrester" are available in different rope lengths (5, 10, 15 and 23 m) and can be used by persons with a total weight of 140 kg (including clothing and equipment). The kernmantle rope (Ø 12 mm) of the typical red lanyard is, of course, sharp-edge tested.

Attach the carabiner hook of the guide rope to the anchorage point of the respective fall prevention device: the ABS lanyard is suitable for use on the anchorage point or roof hook, on the rope of a lifeline system or on the anchorage eye of a glider that travels over the curves and intermediate supports of a rope or rail lifeline system.

With the ABS Lanyard's rope shortener, you can adjust the lanyard optimally so that it is as taut as possible: shortened to a restraint, the lanyard prevents an unintentional misstep over the fall edge or onto components that are not breakthrough-proof. If a fall does occur, the rope shortener locks in place - the fall arrester catches the secured person and protects them from a dangerous impact if the rope is shortened correctly. The textile shock absorber reduces the forces that occur to a maximum of less than 6 kN.

Note on handling PPE & Co.: We are also happy to advise you as our customer on the subject of PPE, anchor points etc. However, our advice here only relates to the technical properties and functions of the respective product. Unfortunately, we cannot provide any information on the actual procedure for using the products and the evaluation of relevant work situations, possible accidents and the creation of risk assessments. We strongly recommend that you attend a course on PPE and occupational safety at your local employers' liability insurance association.

Technical data

  • Certification: DIN EN 353-2:20020 & DIN EN 358:2000
  • edge-tested kernmantel rope (Ø 12 mm) in accordance with RFU CNB/P/11.075
  • max. load capacity: 140 kg
  • max. number of users: 1
  • incl. shock absorber & adjustable rope shortener
  • 10 meter length

Scope of delivery

  • 1 x ABS lanyard - 10 meter moving lanyard
  • 2 x snap hooks
