Description

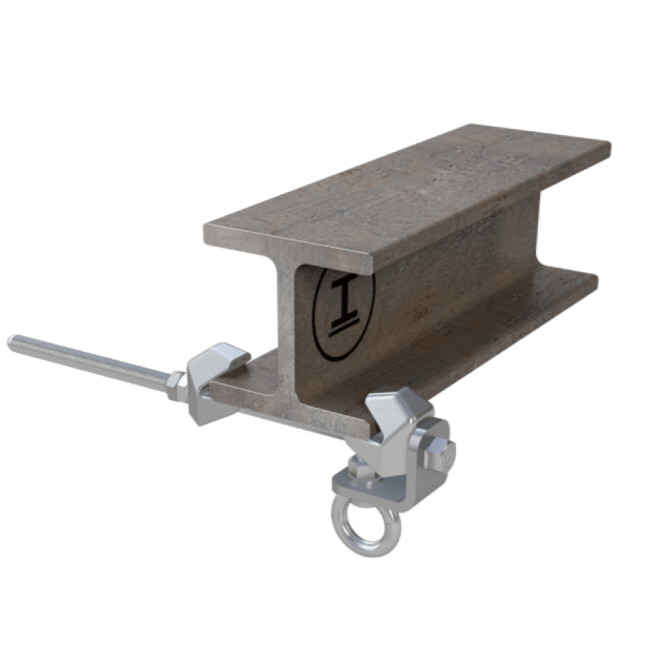

ABS-Lock T-Max Your customized anchor point for oversized steel beams.
As a single anchor point, it can secure up to 3 people and is simply clamped around the flange of the steel beam with its beam clamps. Further advantages are that you do not have to interfere with the building structure with this stainless steel anchor point and that it can be infinitely adjusted to flange widths of up to 320 mm.
Info: Price on request due to individual production!!!
Note on handling PPE & Co.: We are also happy to advise you as our customer on the subject of PPE, anchor points etc. However, our advice here only relates to the technical properties and functions of the respective product. Unfortunately, we cannot provide any information on the actual procedure for using the products and the evaluation of relevant work situations, possible accidents and the creation of risk assessments. We strongly recommend that you attend a course on PPE and occupational safety at your local employers' liability insurance association.
Special features
- customized production
- simple assembly
- Suitable for any load direction
- variable use
Technical data
- Certification: DIN EN 795:2012, B + CEN/TS 16415:2013
- Intermediate support + end and curve support
- Direction of forces: Transverse and axial load
- Base: Steel
- Max. Number of users: 3
- Fastening: Clamps
- Area of application: Overhead
- Flange width: 270 - 1370 mm
- Flange thickness: 5 - 30 mm
- Customized production according to the required flange width and thickness
Scope of delivery
- 1 x ABS-Lock T-Max
- 1 x mounting set
