Description

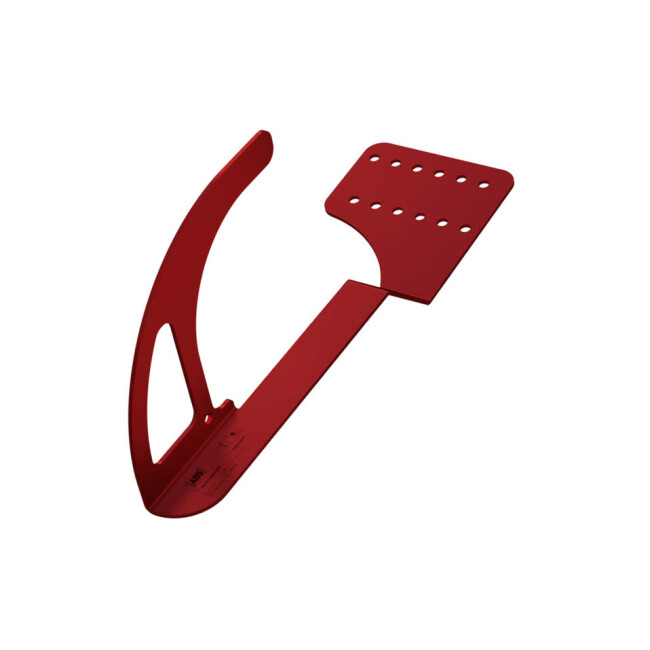

ABS-Lock DH05 Red is a stainless steel safety roof hook for pitched roofs, available here in the color red, including a wide base plate for flexible alignment. It serves both as an anchor point and ladder hook and is screwed through the counter battens in the wooden rafters using two stainless steel screws (also through rafter insulation) and aligned so that it fits perfectly into the curvature of the tiles. Thanks to the wide base plate with 12 drill holes, the safety roof hook can be mounted variably and flexibly.
Note on handling PPE & Co.: We are also happy to advise you as our customer on the subject of PPE, anchor points etc. However, our advice here only relates to the technical properties and functions of the respective product. Unfortunately, we cannot provide any information on the actual procedure for using the products and the evaluation of relevant work situations, possible accidents and the creation of risk assessments. We strongly recommend that you attend a course on PPE and occupational safety at your local employers' liability insurance association.
Special features
- Anchor point + ladder hook
- for load-bearing timber construction
- Base plate for variable mounting
- Screwed into the wooden rafter
- Various colors
Technical data
- Certification: DIN EN 517:2006, type B
- Force directions: Shear load
- Surface: Wood
- Max. number of users: 1
- Fastening: screw in
- Material: stainless steel
- Area of application: pitched roof
- Rafters: min. 60 x 120 mm
- Attachment point + ladder hook
- Color: Red
Scope of delivery
- 1 x ABS-Lock DH05 in red
incl. mounting kit
