Description

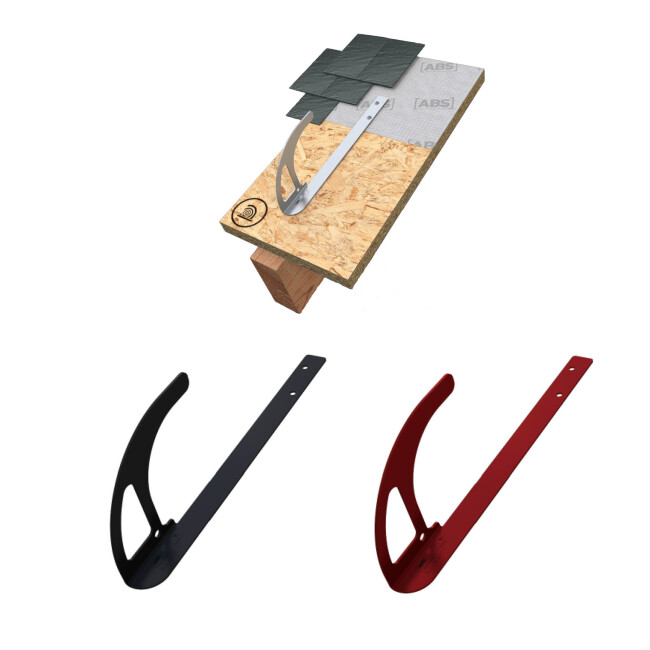

ABS-Lock DH04-F is a safety roof hook and serves as an anchor point and ladder hook for screwing into rafters through rafter insulation. It is the flat version of the ABS-Lock DH04 safety roof hook for pitched roofs and can be used as an anchor point in any load direction. This means that secured users can also move above the anchor point in the direction of the roof end and beyond. You can also attach a ladder to the roof hook.The roof hook has a flat spar for continuous formwork and is fastened through the counter battens/formwork (rafter insulation) in the rafter using two stainless steel screws. The load-bearing beam must be at least 60 mm x 120 mm thick.
The roof hook is available in stainless steel, anthracite or red. Please select the desired color.
Special features
- Anchor point and ladder hook
- Can be used in any load direction
- Available in different colors
- Flat stile
Technical data
- Substrate: Wood
- Area of application: pitched roof
- Fastening: screw in
- Certification: DIN EN 517:2006, type B
- Direction of force: Shear load
- Max. Max. number of users: 1
- Available colors: stainless steel, anthracite, red
Scope of delivery
- 1 x ABS-Lock DH04-F in the desired color
