UNGER HydroPower RO XXL trailer system TRLR1

  • Item number: 435
  • GTIN: 4017942007987
  • 650l filling capacity
  • 3-stage water production
  • integrated battery
  • radio remote control
  • for two operators
  • EXACT PRICE ON REQUEST!

Article currently out of stock
  • Article out of print

Description

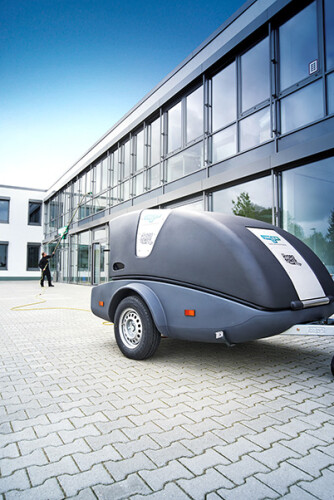

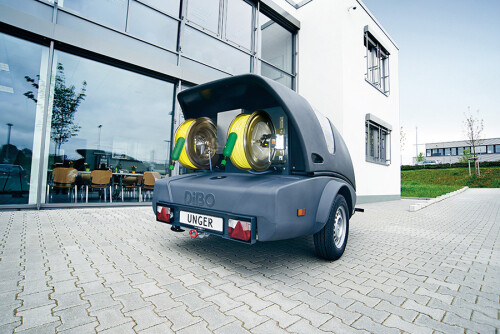

UNGER HydroPower RO XXL trailer system TRLR1 is an integrated, battery-operated trailer system with reverse osmosis filter and 650 l water tank. The trailer offers you absolute flexibility in the production and transportation of 100% pure water for glass and façade cleaning.
Here you get a fully-fledged pure water trailer with a 650 liter water tank and a built-in RO water filter.

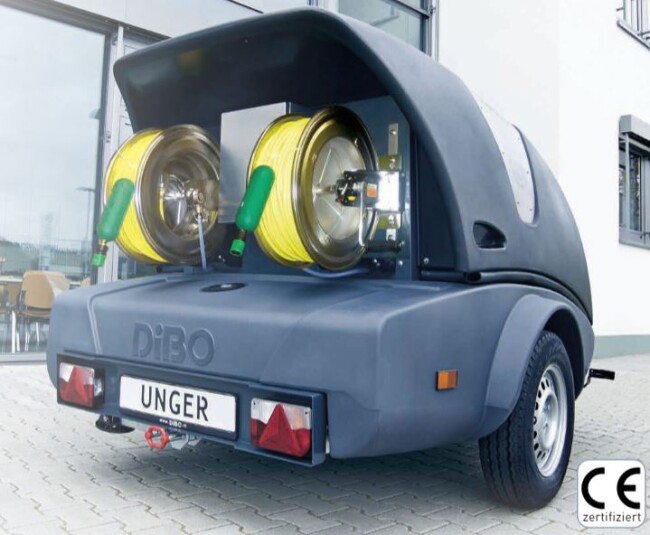

The trailer is equipped with 2 unwinders & pumps, which can also be controlled remotely via a remote control or control panel. The maximum range of the remote controls is approx. 100 m in open terrain. Power is supplied during the day by a 210 ampere-hour AMG battery, which can be charged at night via the integrated charger.
A 3-stage pure water production system is installed in the trailer: carbon pre-filter - RO membrane - downstream HydroPower DI filter. The membrane flushes itself automatically, which extends the service life enormously.

Please note: The towing vehicle must have a towing capacity of at least 1500 kg for the trailer to be towed!

Special features

  • Automatic membrane flushing function when filling - protects the membrane, extends its service life and reduces resin consumption
  • 100 m hoses for long range

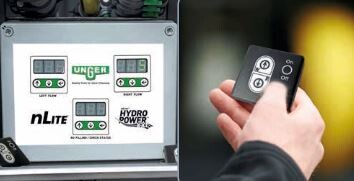

  • Control of the water flow at the control panel or via the remote control
  • Digital display shows water quantity in %, TDS value and battery voltage
  • 3-stage pure water production
  • Maintenance-free high-performance AMG battery
  • Can be charged overnight

Technical data

  • Standard accessories: Charger 30A - 12 V (output), 230 V (input)
  • Battery: 12 V DC - 210 A, gel battery
  • Operating pressure: max. 10 bar (150 psi)
  • Water flow rate: max. 250 l/h
  • Noise level: 75dB
  • Dimensions (VxHxD): 3500 x 1750 x 1600 mm
  • Weight: 1350 kg (filled water tank)
  • Water tank capacity: 750 l volume (650 l filling capacity)
  • Hose reel: 2 x 100 m
  • Minimum water temperature: 4°C
  • Maximum water temperature: 30 °C
  • Pump: 8030-813-239
  • Max. Water flow: 125 l/hour per person

Info: for further technical data, see instructions

Scope of delivery

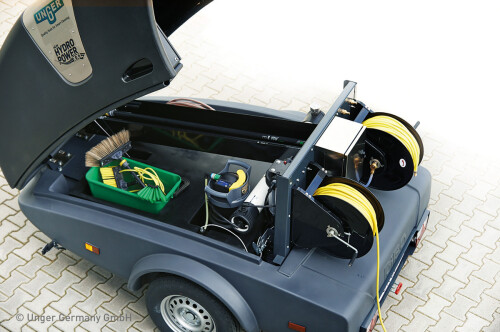

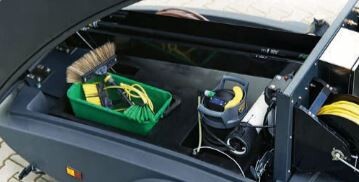

  • 1 x UNGER HydroPower RO XXL trailer system TRLR1 included:
  • 1 x 650 l clean water tank
  • 1- or 2-man operation with 2 stainless steel hose reels and 2 x 12 V pumps (bar)
  • 2 x high-quality 100 m hoses
  • 1 x digital display
  • 1 x integrated TDS meter
  • 1 x maintenance-free high-performance AMG battery (210 ampere hours) - lasts for approx. one working day
  • 1 x charger with automatic switch-off

Downloads

PDF UNGER HydroPower RO XXL Anhängersystem - Anleitung
PDF UNGER HydroPower RO XXL Anhängersystem - Broschüre
