Sandblasting IBIX Profiset dry fine blasting

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 1457
  • GTIN: 4255636901382
  • Professional set for sandblasting
  • incl. blasting unit, refrigeration dryer & compressor
  • Operator protection with blasting helmet and blasting suit
  • Price advantage with approx. 5% discount
Article currently out of stock
  • Article out of print

Description

Sandblasting IBIX Profiset dry fine blasting as a complete set for sandblasting with a price advantage of approx. 5% discount. The IBIX professional dry fine sandblasting set contains all the important components needed to achieve optimum blasting results.

The highly professional IBIX IB 900 compressor with a 4-stroke petrol engine and the IBIX LT9 refrigeration dryer are connected with a compressed air hose so that the refrigeration dryer can separate the moisture released by the compressor from the air. This "dry" air passes through another compressed air hose to the IBIX blasting unit 9F/2. The blasting unit can now carry out fine blasting or sandblasting work using the IBIX 5 blasting abrasive 25 kg.

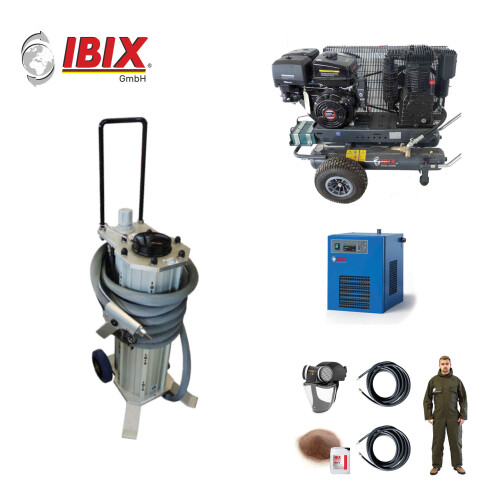

The sandblasting IBIX professional set dry fine blasting consists of the IBIX blasting unit 9F/2 incl. starter package with nozzles, the IBIX refrigeration dryer LT9 and the IBIX compressor IB 900 as well as two IBIX compressed air hoses HD10m DN 13 and the IBIX 5 blasting abrasive 25 kg. In addition, the IBIX Active blasting helmet and the IBIX Light blasting suit in sizes S - XL are available to protect the operator.

The sandblasting IBIX professional dry fine blasting set is also available with the IBIX blasting suit Light in sizes 2XL - 4XL.

Special features

  • Complete set for dry fine blasting
  • low blasting material consumption
  • Compressed air preparation
  • 4-stroke petrol engine compressor
  • Operator protection through blasting helmet and blasting suit

Technical data

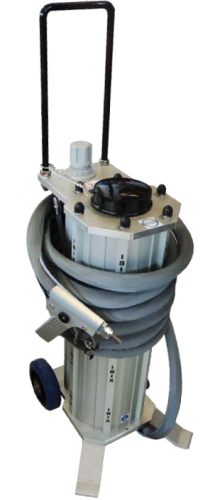

IBIX blasting unit 9F/2:

  • Air pressure: adjustable in the range from 0.2 to 7.5 bar (depending on the compressor used)
  • Precise dosing of the abrasive
  • Grain size of the abrasive: 38 µm to 800 µm
  • Compressed air supply: min. 500 l/min
  • Hose length: 6 meters
  • Capacity: 9 liters
  • Standard nozzle: 3 mm cylindrical
  • Empty weight: approx. 18 kg
  • Dimensions (H/W/L): 870 x 310 x 350 mm

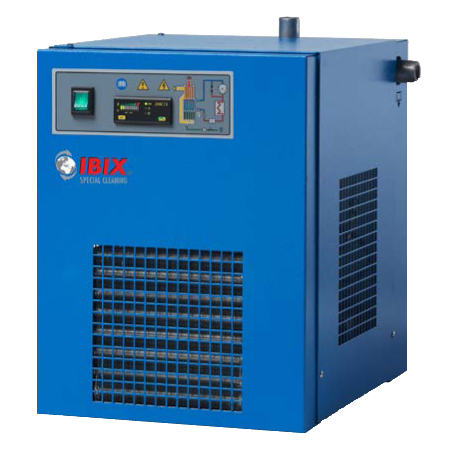

IBIX LT9 refrigeration dryer:

  • Max. air pressure: 14 bar
  • Air volume: 950 l/min
  • Power consumption: 0.19 kW
  • Weight (empty): 22 kg
  • Dimensions (L/W/H): 520 x 440 x 530 mm

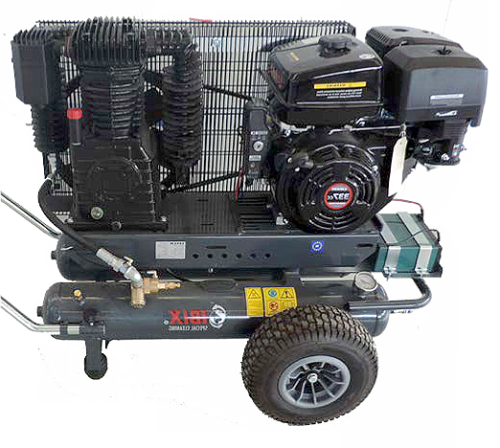

IBIX compressor IB 900:

  • Petrol engine: 8 kW
  • Noise level: 97 dB
  • Air delivery rate: 900 l/min.
  • Max. pressure: 10 bar
  • Dimensions: 1150 x 751 x 1070 mm
  • Buffer tank: 2 x 17 liters
  • Weight: 167 kg
  • Start: E-starter

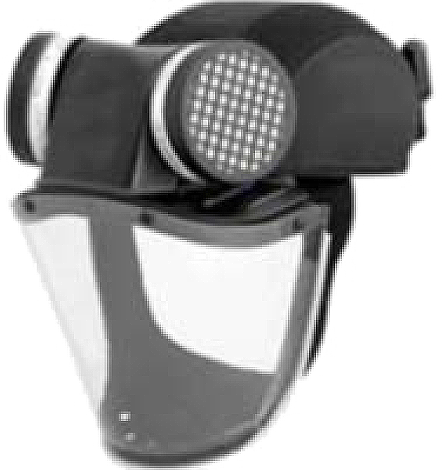

IBIX Beam Helmet Active:

  • Battery operated
  • ergonomically shaped
  • Li-ion battery with a runtime of up to 8 hours on a single charge
  • Air flow of 160 l/min
  • Respiratory protection class: TH1 P according to EN 812
  • Head protection class: A1 according to EN 812
  • Weight: 670 grams
  • Infinitely variable adjustment option


IBIX blast protection suit Light:

  • Base material: 100% cotton
  • Reinforcement material: 100% cotton
  • Lining: 50% cotton; 50% polyester
  • according to EN ISO 1487: 2002 Protective clothing for blasting work with granular abrasives
  • Weight: 1.4 kg

Scope of delivery

  • 1 x IBIX blasting unit 9F/2
  • 1 x starter kit incl. 3 mm cyl. nozzle, 4.0 mm vent. nozzle, aluminum holder, sieve, gloves
  • 1 x IBIX LT9 refrigeration dryer
  • 1 x IBIX compressor IB 900
  • 1 x IBIX blasting helmet Active
  • 1 x IBIX blasting suit Light (size S - XL)
  • 2 x IBIX compressed air hose HD10m DN13
  • 1 x IBIX 5 blasting abrasive 25 kg
