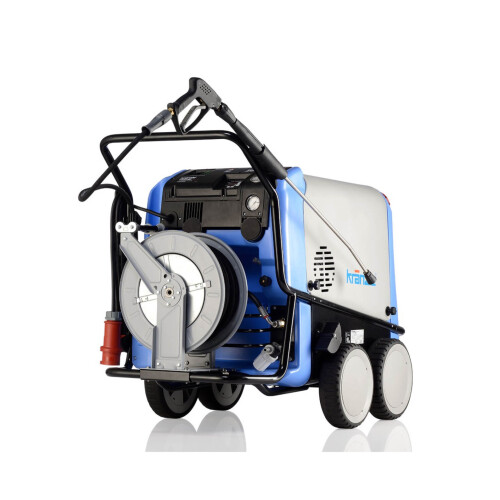

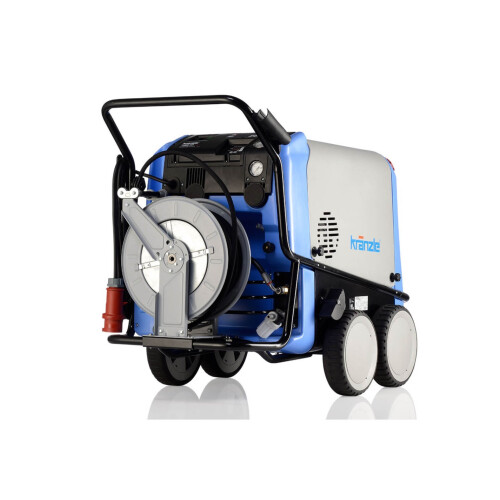

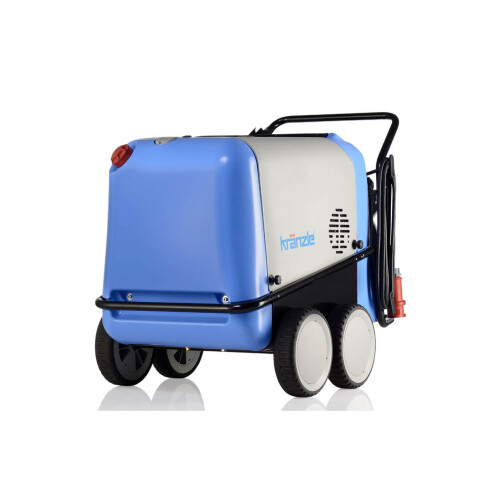

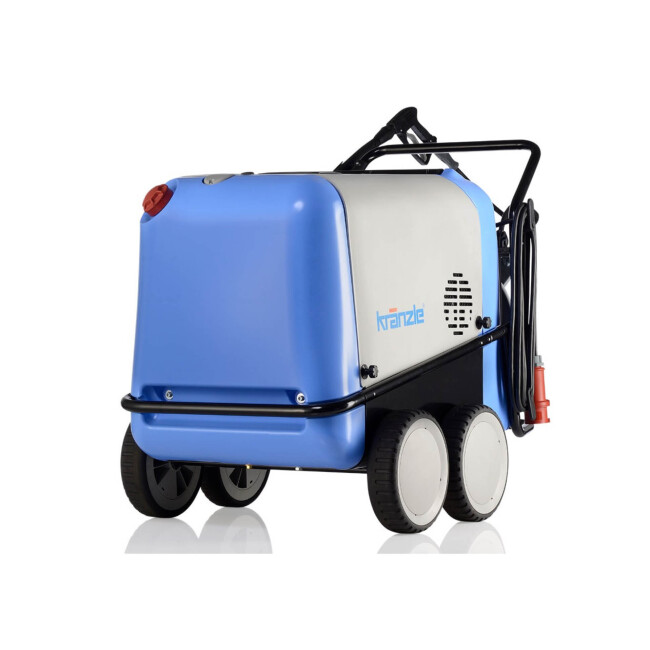

Kränzle high-pressure cleaner hot water therm-RP 1400 ATr

With us, you can easily lease or finance. We offer attractive conditions through our partners Albis and PEAC.

  • Item number: 888
  • GTIN: 4012314300475
  • for maximum performance, reliability and safety
  • with in-line pump for first-class flushing and cleaning effect
  • Flow monitor
  • Safety valve
  • Optical flame monitoring
  • Digital control panel
  • Automatic hose rewind
  • Working pressure: 70-170 bar
  • Water output: 23.3 l/min
  • Weight: 240 kg
Article currently out of stock
  • Article out of print

Description

Kränzle high-pressure cleaner hot water therm-RP 1400 ATr combines a multitude of technical innovations with an impressively high cleaning and flushing effect.

The highlights at a glance:

  • Safety valve: Protects against impermissibly high overpressure
  • Flow monitor: Prevents the heating chamber from overheating if there is a lack of water
  • Pressure switch: Enables combustion only when working pressure is present
  • Differential pressure switch: Controls the automatic switch-off if the safety switch-off gun remains closed for 30 seconds
  • Overcurrent trigger: Switches off the high-pressure cleaner in the event of excessive power consumption
  • Optical flame monitoring: Switches off the fuel supply when the burner flame goes out
  • Pressure control valve: Enables infinitely variable regulation of the water volume and water pressure as well as unpressurized bypass operation
  • Digital thermostat
    Operating mode 1: Thermostat control in °C
    Operating mode 2: Burner output in %
  • Automatic hose reel: automatic hose rewind
  • Removable hood: easy to service
  • Organizational system: practical holders for safety shut-off gun and cleaning lances

Here you get a high-level hot water appliance with the best cleaning power and disinfecting effect.

Special features

  • Detergent suction, direct -without additional accessories
  • Quick-change plug-in system
  • Twist-Stop anti-twist protection
  • Infinitely variable pressure regulation
  • combustion chamber pre-ventilation
  • Burner stop in case of fuel oil shortage
  • Fuel tank: 35 l
  • Total stop system
  • Water tank: 12 l volume

Technical data

High-pressure cleaner:

  • Working pressure: 70 - 170 bar / 7 - 17 MPa
  • Water output: 23.3 l/min / 1400 l/h
  • Permissible overpressure: 190 bar / 19 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
  • Power consumption: 8.0 kW
  • Power output: 6.3 kW
  • Mains connection cable: 7.5 m
  • Plug: CEE 32 A
  • Dimensions (L/W/H): 1300 x 800 x 1015 mm
  • Weight: 240 kg

Hot water:

  • Hot water output: 12 - 80 °C (infinitely variable)
  • Steam level max.: 140 °C
  • Heating oil consumption max. heating capacity: 7.7 kg/h / 9.2 l/h
  • Heating oil consumption ΔT 45°: 5.6 / 6.6 kW
  • Heating output: 84 kW

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 250 bar/ 25 MPa
  • Water output: 40 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle high-pressure cleaner hot water therm-RP 1400 ATr included:
  • 1 x high pressure hose 20 m (DN8)

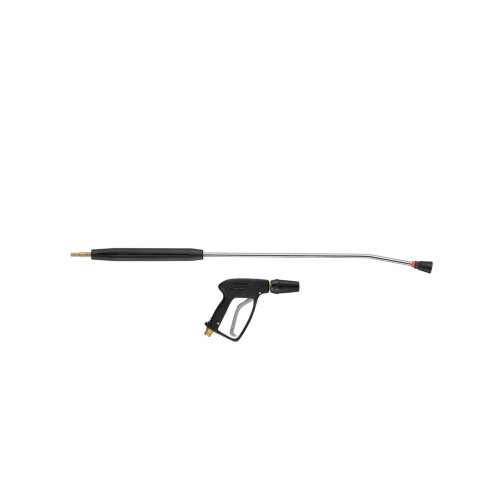

  • 1 x Starlet safety shut-off gun, short
  • 1 x lance with flat jet nozzle, 100 cm length, handle, 08 nozzle size (red), 25° spray angle
  • 1 x water inlet filter

Downloads

PDF Kränzle Hochdruckreiniger Heisswasser therm-RP 1400 ATr - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Heisswasser therm-RP 1400 ATr - Datenblatt
