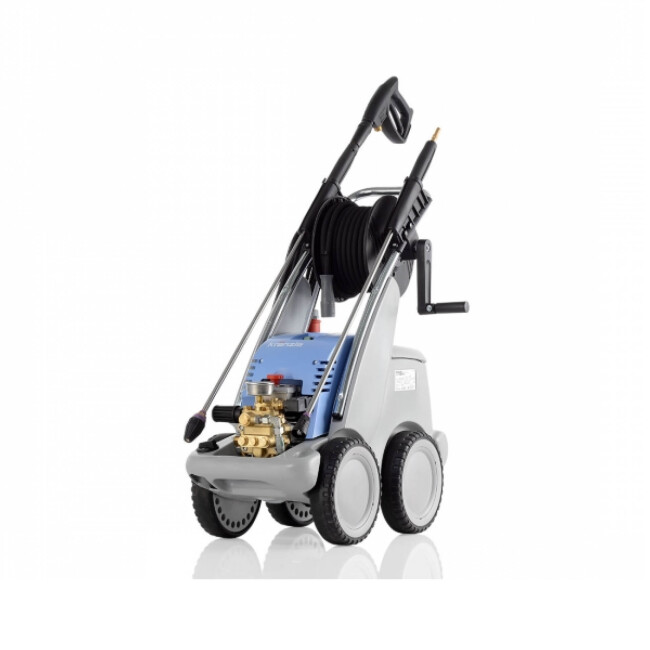

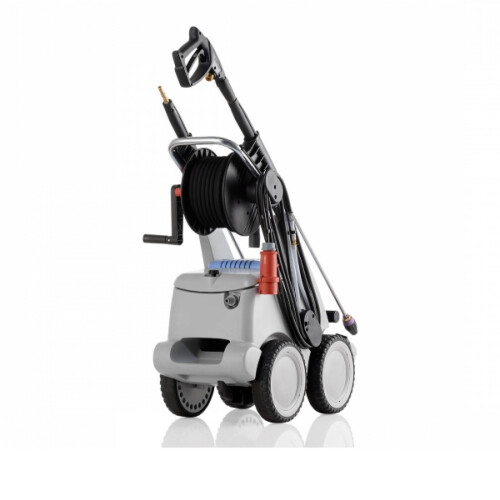

Kränzle high-pressure cleaner cold water quadro 899 TST

  • Item number: 817
  • GTIN: 4012314007794
  • Professional tool for professional dirt removal
  • Solid rubber tires
  • Total stop system with delayed motor shutdown
  • 10 l water tank
  • Medium quadro series
  • Working pressure: 30-150 bar
  • Water output: 15 l/min
  • Weight: 63 kg
Article currently out of stock
  • Article out of print

Description

Kränzle high-pressure cleaner cold water quadro 899 TST including lance with flat jet nozzle, lance with dirt killer, safety shut-off gun and high-pressure hose. This model also has an integrated water tank with 10 volumes, which serves as a water reservoir and buffer between the mains supply and the pump. Thanks to the water tank, cleaning agents can now also be sucked directly into the pump, which prevents a reduction in performance and leads to an increase in overall efficiency. The additives are applied at an undiminished working pressure. There is also a float in the water tank that switches off the motor pump if the water level falls below a certain level. This prevents pump damage in the event of a water shortage. The ram protection also protects the high-pressure pump from external damage. With its 4 large wheels with solid rubber tires, this appliance can go over hill and dale - ready for use at any time with a powerful cleaning effect.

Special features

  • Quick-change plug-in system D 12
  • Total stop system with delayed motor shutdown
  • Safety cut-out
  • Pressure regulation: Infinitely variable working pressure
  • Detergent suction
  • Parking brake
  • Water tank: volume 10 l
  • ram protection
  • Oversized gearbox and oil housing

Technical data

High-pressure cleaner:

  • Working pressure: 30 - 150 bar | 3 - 15 MPa
  • Water output: 15 l/min | 900 l/h
  • Permissible overpressure: 170 bar | 17 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V | 3 ~ | 50 Hz | 8.5 A
  • Power consumption: 5.5 kW
  • Power output: 4.0 kW
  • Mains connection cable: 7.5 m
  • Dimensions (L/W/H): 780 x 395 x 870 mm
  • Weight: 63 kg

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: D12 plug-in coupling
  • Working pressure: 207 bar/ 27 MPa
  • Water output: 30 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle cold water high-pressure cleaner quadro 899 TST with integrated hose reel included:
  • 1 x high pressure hose 15 m (DN8)

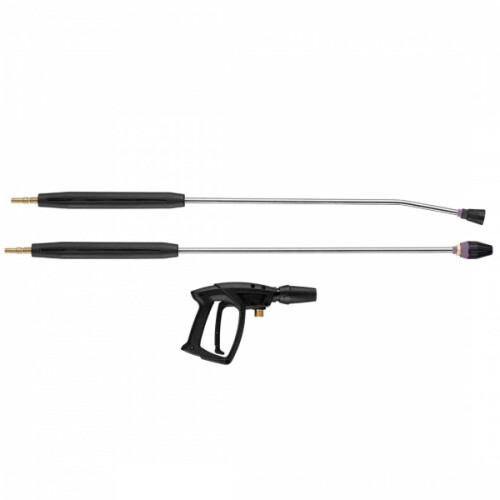

  • 1 x safety shut-off gun M2000, short
  • 1 x lance with flat jet nozzle, 100 cm long, handle, 06 nozzle size (violet), 25° spray angle
  • 1 x lance with dirt killer, 100 cm length, handle, 06 nozzle size (violet)

Downloads

PDF Kränzle Hochdruckreiniger Kaltwasser quadro 899 TST - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Kaltwasser quadro 899 TST - Datenblatt
