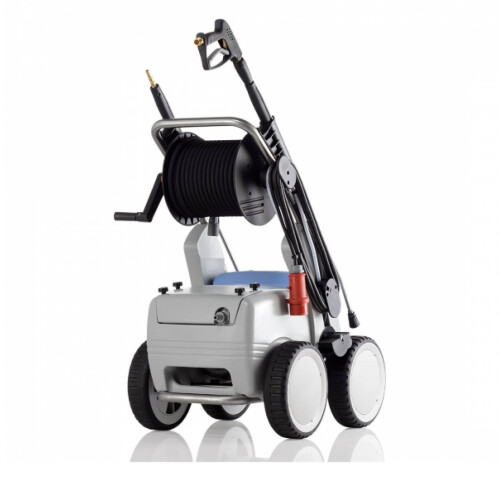

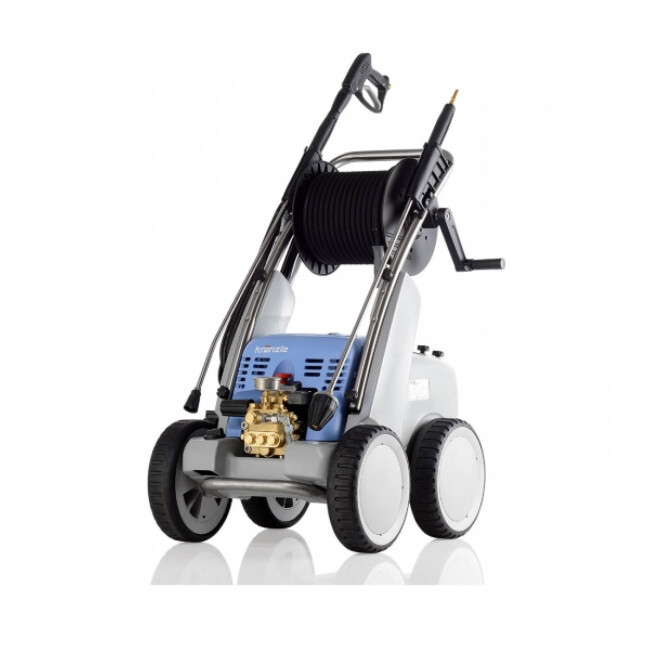

Kränzle high-pressure cleaner cold water quadro 800 TST

  • Item number: 818
  • GTIN: 4012314006667
  • large quadro series
  • Stainless steel chassis
  • Ergonomic, removable handlebar
  • Water tank: volume 12 l
  • Total stop system with delayed engine shutdown
  • incl. turbo killer
  • Working pressure: 30-250 bar - infinitely variable
  • Water output: 13.3 l/min
  • Weight: 89 kg
Article currently out of stock
  • Article out of print

Description

Kränzle cold water high-pressure cleaner quadro 800 TST belongs to the large quadro series, all of which have a durable and corrosion-resistant stainless steel chassis. In addition, all models in this series automatically disconnect from the power supply if they have not been switched off after use or if the gun has not been operated for 20 minutes. All quadro models in this series also have motor protection in the form of an overcurrent release, which switches the device off in the event of increased current consumption.

Further features at a glance:

  • Oversized gearbox and oil housing
  • Roto-Mold chassis - practically indestructible
  • Ergonomic, removable handlebar
  • Stainless steel chassis - durable and corrosion-resistant
  • Convenient hose reel - space-saving storage of the high-pressure hose
  • Large stainless steel pressure gauge - easy to read the continuously adjustable working pressure
  • Impact protection - protects the high-pressure pump from damage
  • Water tank: 12 l capacity - prevents damage to the high-pressure pump in the event of a water shortage
  • Organization system - practical holders for high-pressure gun and cleaning lances
  • Parking brake - optimum stability
  • Detergent suction - direct and without accessories
  • Total stop system with delayed motor shutdown - relieves the high-pressure pump

As you can see, you are purchasing an absolute, particularly powerful professional appliance for professional dirt removal.

Technical data

High-pressure cleaner:

  • Working pressure: 30 - 250 bar | 3 - 25 MPa
  • Water output: 13.3 l/min | 800 l/h
  • Permissible overpressure: 270 bar | 27 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V | 3 ~ | 50 Hz | 12 A
  • Power consumption: 7.5 kW
  • Power output: 5.5 kW
  • Mains connection cable: 7.5 m
  • Dimensions (L/W/H): 770 x 570 x 990 mm
  • Weight: 89 kg

Safety shut-off gun:

  • Inlet: M22x1.5AG
  • Outlet: D12 plug-in coupling
  • Working pressure: 250 bar/ 25 MPa
  • Water output: 40 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle cold water high-pressure cleaner quadro 800 TST with integrated hose reel included:
  • 1 x high pressure hose 20 m (DN8)

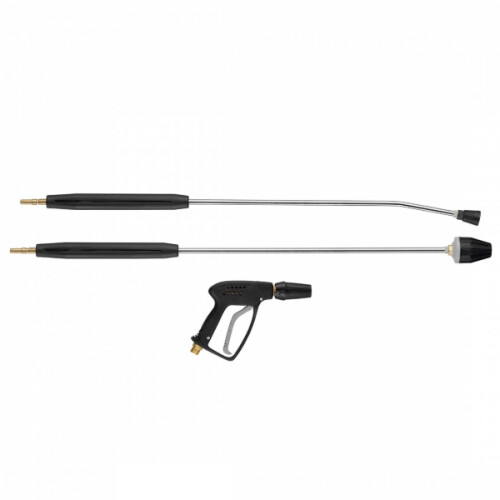

  • 1 x Starlet safety shut-off gun, short
  • 1 x lance with flat jet nozzle, 100 cm long, handle, 04 nozzle size (gray), 25° spray angle
  • 1 x lance with turbo killer, 100 cm length, handle, 04 nozzle size (gray)
