Description

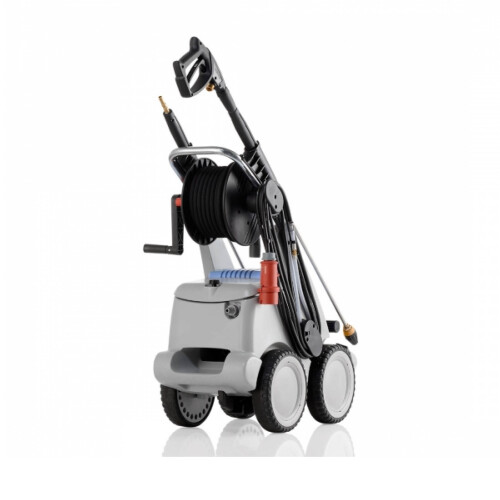

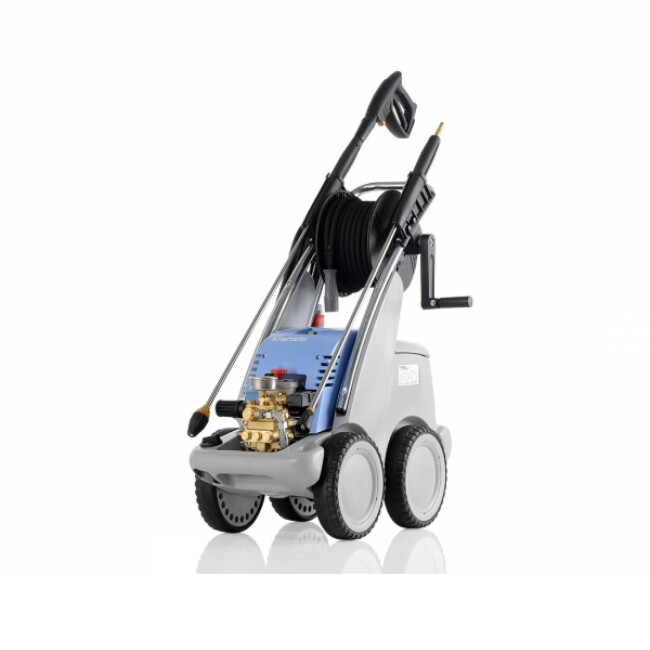

Kränzle cold water high-pressure cleaner quadro 599 TST belongs to the mid-range quadro series and is therefore a particularly powerful appliance. Even in tough continuous use, this model always gets to work powerfully. The powerful high-pressure pump developed by Kränzle is mounted horizontally and is protected from damage by a front bumper. The one-piece Roto-Mold chassis ensures high stability and the large wheels with solid rubber tyres are ideal for any location, with excellent stability thanks to the parking brake. To the left and right of the integrated hose reel, you can safely store your high-pressure gun and cleaning lances in the storage system and take them with you wherever you go. In order to keep the load and wear caused by frequent, work-related switching on and off of the motor to a minimum, the device has a motor run-on circuit. The pump continues to operate unpressurized in the bypass for a further 30 seconds after the gun is closed, only then does the motor switch off. You can reactivate the high-pressure device by actuating the gun again.
Special features
- Quick-change plug-in system D 12
- Total stop system with delayed motor shutdown
- Safety cut-out
- Pressure regulation: Infinitely variable working pressure
- Detergent suction
- Parking brake
- Water tank: volume 10 l
- Impact protection
Technical data
High-pressure cleaner:
- Working pressure: 30 - 150 bar | 3 - 15 MPa
- Water output: 10 l/min | 600 l/h
- Permissible overpressure: 165 bar | 16.5 MPa
- Motor speed: 1400 rpm
- Connection: 230 V | 1 ~ | 50 Hz | 14 A
- Power consumption: 3.3 kW
- Power output: 2.4 kW
- Mains connection cable: 5 m
- Dimensions (L/W/H): 780 x 395 x 870 mm
- Weight: 63 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner quadro 599 TST with integrated hose reel included:
- 1 x high pressure hose 20 m (DN6)

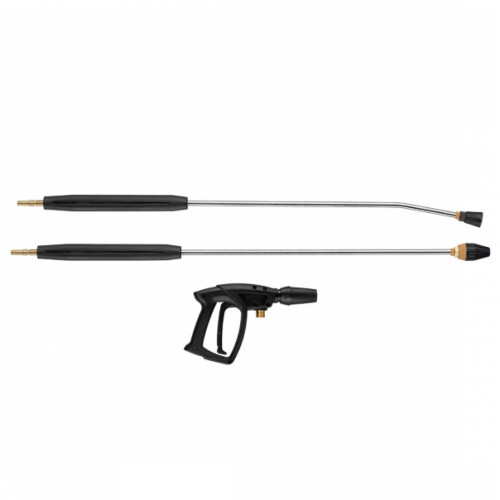

- 1 x safety shut-off gun M2000, short
- 1 x lance with flat jet nozzle, 100 cm long, handle, 035 nozzle size (gold), 25° spray angle
- 1 x lance with dirt killer, 100 cm length, handle, 035 nozzle size (gold)
