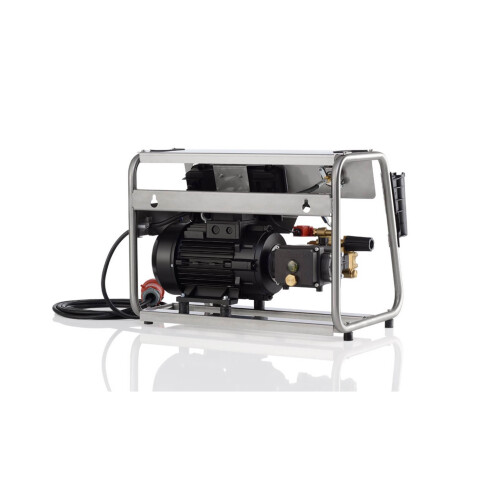

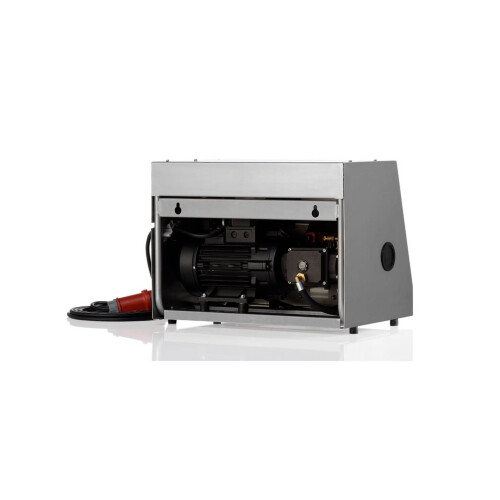

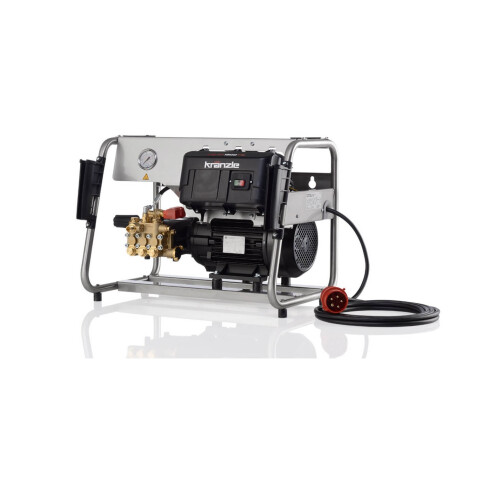

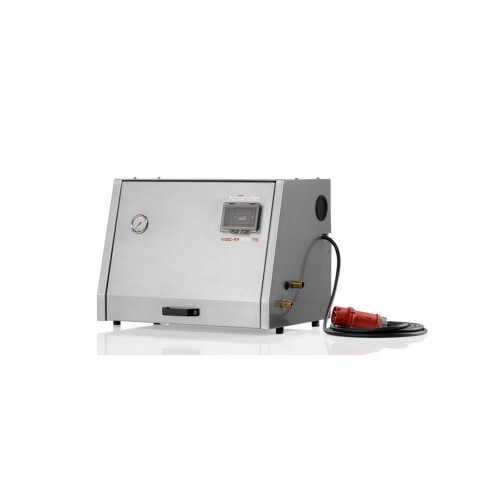

Kränzle high pressure cleaner cold water WS(C)-RP 1600 TS

  • Item number: 881
  • Powerhouse with new in-line pump technology
  • Powerful cleaning with best flushing effect
  • Available with or without protective cover
  • incl. bracket for wall mounting
  • Pressure regulation, quick-change plug-in system
  • Working pressure: 30-150 bar
  • Water output: 26.7 l/min
  • Weight: 62 / 65 kg
Protective cover
Article currently out of stock
  • Article out of print

Description

Kränzle cold water high-pressure cleaner WS(C)-RP 1600 TS with in-line pump for maximum cleaning performance and best washing effect. Here you get a compact cold water professional, with or without stainless steel housing and optional wall mounting, perfect for confined spaces. The safety shut-off gun and lances can also be stored in the integrated storage system to save space. Features such as the total stop system with delayed motor shut-off, pressure regulation and the quick-change plug-in system are of course included as standard.

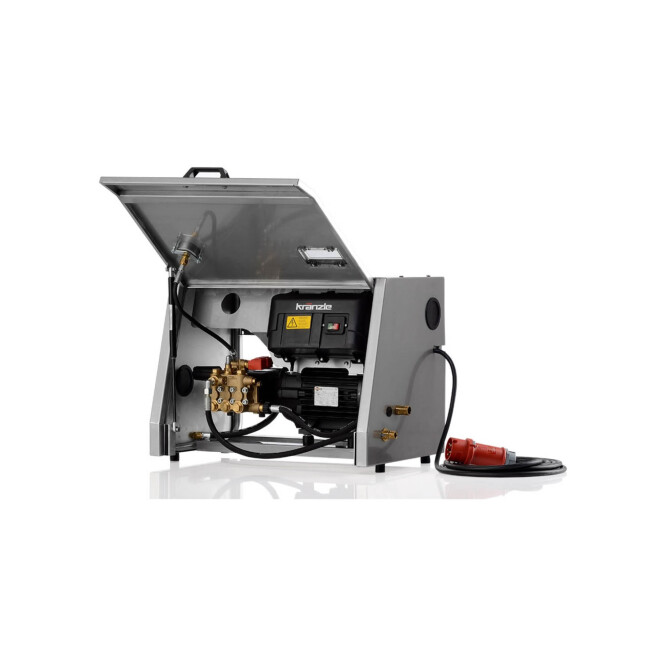

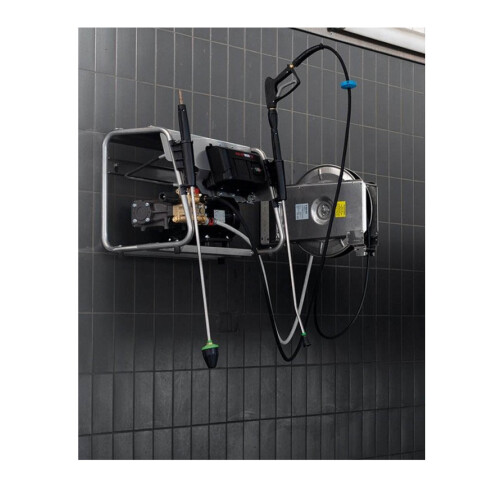

You can optionally purchase the device with a protective cover - a gas pressure spring ensures that the hood is securely fixed in any position during operation. You can also use the WS(C)-RP as a stand-alone unit or, thanks to the bracket, as a wall-mounted unit.
But what makes the new pump technology so unique? The advantages at a glance:

  • Pump as a separate unit
  • Can be used with various engine sizes
  • Stable crankshaft with connecting rods lubricated in an oil bath
  • Large oil volume
  • Power transmission as in a car engine via crankshaft, connecting rod and plunger
  • Forced return of the plunger

Just decide whether you want to choose the version with or with a protective cover!

Special features

  • In-line pump with unloader valve and pressure switch
  • Total-Stop system with delayed motor shutdown to relieve the high-pressure pump
  • Quick-change plug-in system
  • Pressure regulation, working pressure infinitely variable
  • Organization system
  • Bracket for wall mounting
  • Floor-standing and wall-mounted unit
  • Stainless steel cover protects against soiling, durable & corrosion-resistant

Technical data

  • Working pressure: 30 - 150 bar / 3 - 15 MPa
  • Water output: 26.7 l/min / 1600 l/h
  • Permissible overpressure: 170 bar / 17 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
  • Power consumption: 8.0 kW
  • Power output: 6.3 kW
  • Mains connection cable: 7.5 m
  • Plug: CEE 32A
  • Dimensions (L/W/H): 670 x 430 x 510 mm
  • Weight: 62 / 65 kg

Safety shut-off gun:

  • Input: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 250 bar/ 25 MPa
  • Water output: 40 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle cold water high-pressure cleaner WS(C)-RP 1600 TS
  • 1 x high pressure hose 10 m (DN8)

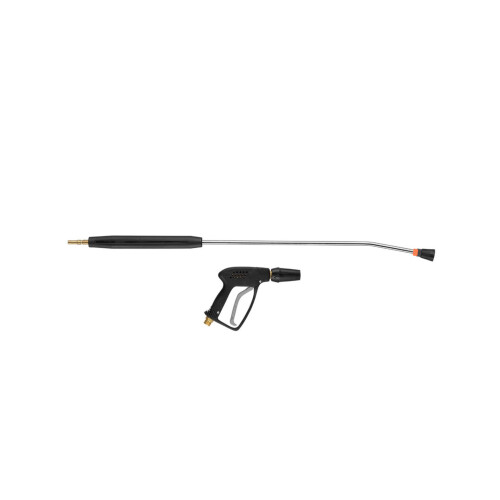

  • 1 x Starlet safety shut-off gun
  • 1 x lance with flat jet nozzle, 1000 mm, with handle, nozzle size 11 (orange), 25° spray angle

Downloads

PDF Kränzle Hochdruckreiniger Kaltwasser WS(C)-RP 1600 TS - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Kaltwasser WS(C)-RP 1600 TS - Datenblatt
