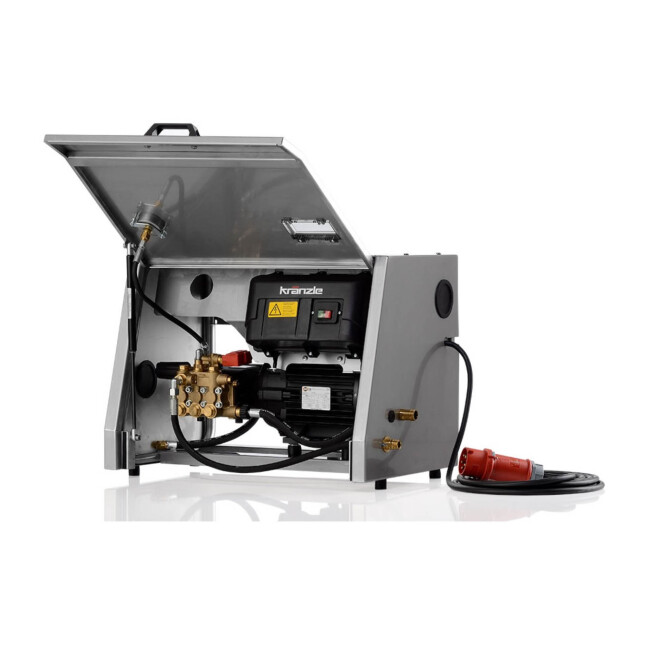

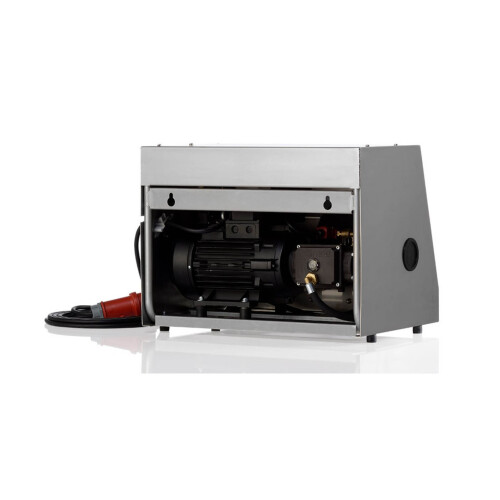

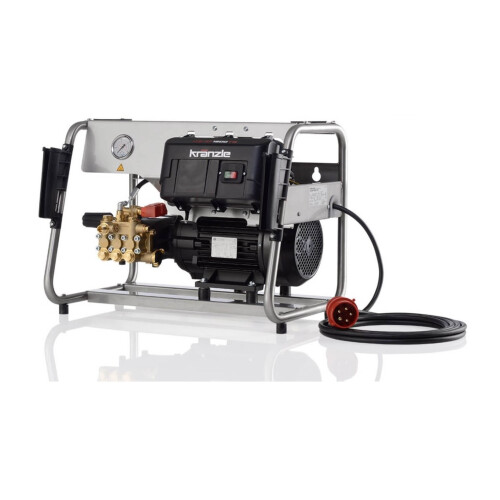

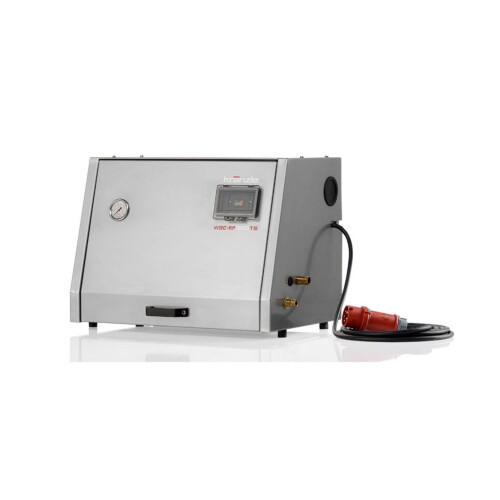

Kränzle high pressure cleaner cold water WS(C)-RP 1000 TS

  • Item number: 877
  • Professional appliance with innovative in-line pump
  • Particularly high flushing effect
  • Extremely long service life
  • Integrated unloader valve
  • incl. wall bracket & optional stainless steel cover
  • Working pressure: 30-200 bar
  • Water output: 16.6 l/min
  • Weight: 62 / 65 kg
Protective cover
Article currently out of stock
  • Article out of print

Description

Kränzle cold water high-pressure cleaner WS(C)-RP 1000 TS is a compact cold water professional with an in-line pump for extra high washing efficiency. Thanks to the wall bracket, the device can be securely attached to the wall and is therefore ideal for use in confined spaces, e.g. in wash bays or vehicle fleets. The cleaning lance and high-pressure gun can also be stowed away in the storage system to save space. The professional device also has an optional stainless steel cover with gas pressure spring which ensures that the hood remains securely fixed in any position. The innovative in-line pump with integrated unloader valve and total stop system with delayed motor shut-off enables an even greater water flow with a significantly higher flushing effect than conventional pumps. A crankshaft moves the in-line plungers of the in-line pump via connecting rods. This means that even the most stubborn dirt can be removed effortlessly.

Special features

  • In-line pump with unloader valve and pressure switch
  • Total-Stop system with delayed motor shutdown to relieve the high-pressure pump
  • Pressure regulation, working pressure infinitely variable
  • Quick-change plug-in system
  • Stainless steel cover protects against soiling, durable & corrosion-resistant
  • Organization system

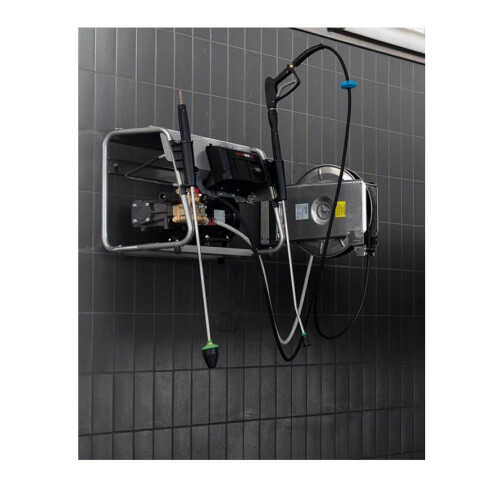

  • Bracket for wall mounting
  • Floor-standing and wall-mounted unit

Technical data

  • Working pressure: 30 - 200 bar / 3 - 20 MPa
  • Water output: 16.6 l/min / 1000 l/h
  • Permissible overpressure: 220 bar / 22 MPa
  • Motor speed: 1400 rpm
  • Connection: 400 V / 3 ~ / 50 Hz / 13.5 A
  • Power consumption: 8.0 kW
  • Power output: 6.3 kW
  • Mains connection cable: 7.5 m
  • Plug: CEE 32A
  • Dimensions (L/W/H): 670 x 430 x 510 mm
  • Weight: 62 / 65 kg

Safety shut-off gun:

  • Input: M22x1.5AG
  • Outlet: Plug-in coupling D12
  • Working pressure: 250 bar/ 25 MPa
  • Water output: 40 l/min
  • Max. temperature: 150

Scope of delivery

  • 1 x Kränzle cold water high-pressure cleaner WS(C)-RP 1000 TS
  • 1 x high pressure hose 10 m (DN8)

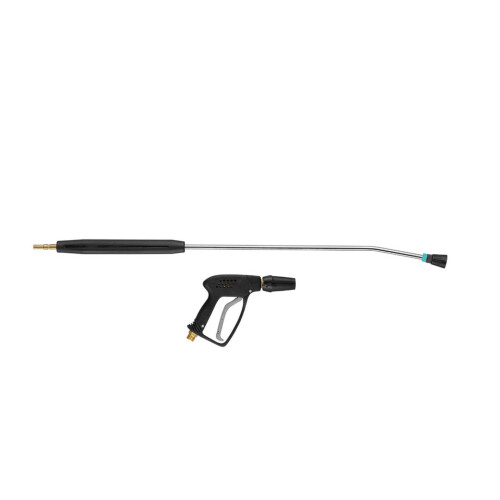

  • 1 x Starlet safety shut-off gun
  • 1 x lance with flat jet nozzle, 1000 mm, with handle, nozzle size 05 (turquoise), 25° spray angle

Downloads

PDF Kränzle Hochdruckreiniger Kaltwasser WSC-RP 1000 TS - Betriebsanleitung
PDF Kränzle Hochdruckreiniger Kaltwasser WS(C)-RP 1000 TS - Datenblatt
