Description

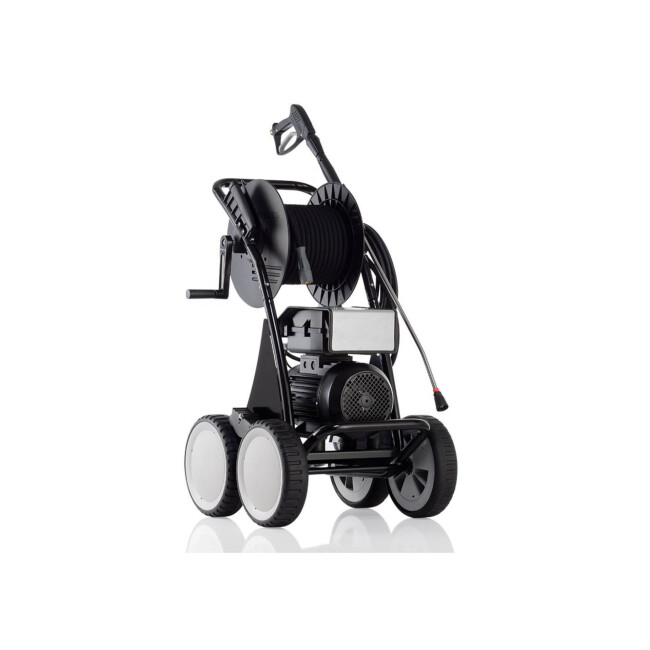

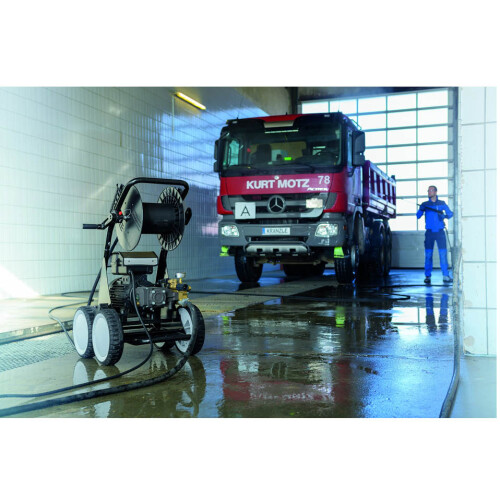

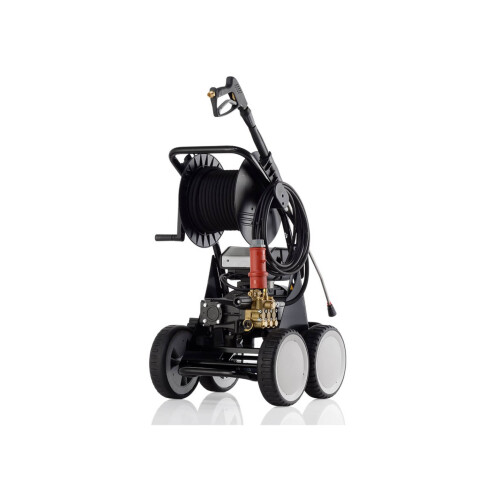

Kränzle cold water high-pressure cleaner LX-RP 1400 TST is your expert when it comes to the daily cleaning of stables, equipment and tractors. Thanks to the innovative in-line pump with integrated unloader valve and pressure switch, a first-class washing effect is achieved at high working pressure. The LX-XP series thus sets new standards in every respect and impresses with its technology, quality and performance.
Further highlights at a glance:
- Total stop system with delayed engine shutdown to relieve the high-pressure pump
- Quick-change plug-in system for quick and easy lance replacement
- Pressure regulation, working pressure infinitely variable
- 7.5 m connection cable with cable rewind
- Integrated hose reel with 20 m steel fabric high-pressure hose and folding crank handle
- Organization system: Holders for safety shut-off gun and lance
- Chassis on 4 wheels, impact protection and parking brake
- Durable and corrosion-resistant stainless steel protective cover
- Direct suction: Suction height 2.5 m
Special features
- Cold water specialist for agriculture and animal husbandry
- Robust, powerful with high flushing effect
Technical data
- Working pressure: 30 - 170 bar / 3 - 17 MPa
- Water output: 23.3 l/min / 1400 l/h
- Permissible overpressure: 190 bar / 19 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 14.3 A
- Power consumption: 8.0 kW
- Power output: 6.3 kW
- Mains connection cable: 7.5 m
- Plug: CEE 32A
- Dimensions (L/W/H): 735 x 580 x 1020 mm
- Weight: 94 kg
Safety shut-off gun:
- Input: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner LX-RP 1400 TST
- 1 x high pressure hose 20 m (DN8) on hose reel

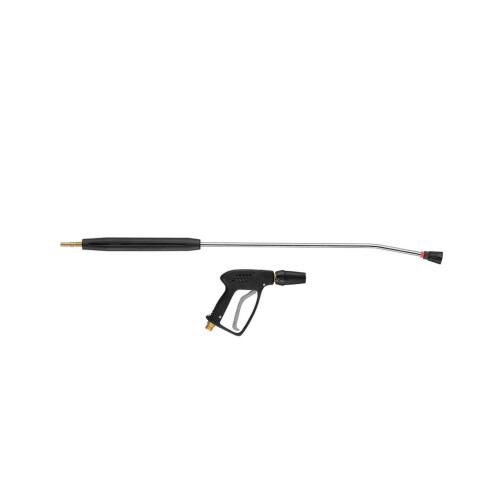

- 1 x Starlet safety shut-off gun
- 1 x lance with flat jet nozzle, 1000 mm, with handle, nozzle size 08 (red), 40° spray angle
