Description

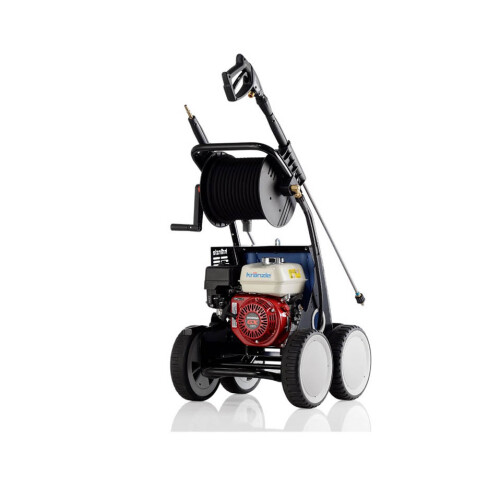

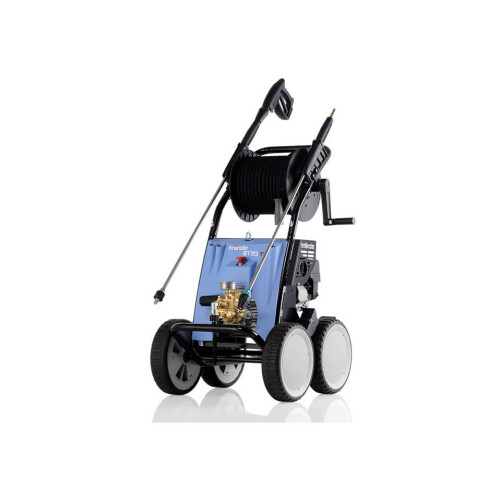

Kränzle cold water high-pressure cleaner B 170 T - your independent power pack on an all-terrain chassis with impact protection and parking brake. This means that your high-pressure pump is always protected from damage and your device is always stable and safe, even on the bumpiest of surfaces. Thanks to the Honda combustion engine and the suction hose with suction filter, the high-pressure cleaner can be operated without a power or water connection. The cleaning lance and high-pressure gun can always be carried and stored in the integrated storage system, while the high-pressure hose included in the scope of delivery can be stored on the convenient hose reel with folding crank handle. Furthermore, the cleaning lance and accessories can be changed quickly and easily thanks to the quick-change system, the twist-stop anti-twist protection prevents the high-pressure hose from twisting and the working pressure can also be adjusted to any situation thanks to the infinitely variable pressure regulation.
Special features
- Quick-change plug-in system D12
- Speed regulation to reduce fuel consumption
- Infinitely variable working pressure
- Twist-stop anti-twist protection
- Exhaust protection cover
- Impact protection
- Direct suction: Suction height: 2.5 m
- All-terrain chassis
- tidy system
- Service-friendly Honda engine with low oil level protection
Technical data
High-pressure cleaner:
- Working pressure: 30 - 150 bar / 3 - 15 MPa
- Water output: 12.5 l/min / 750 l/h
- Permissible overpressure: 170 bar / 17 MPa
- Engine: Honda GX160 LX
- Dimensions (L/W/H): 720 x 570 x 960 mm
- Weight: 67 kg
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: D12 plug-in coupling
- Working pressure: 207 bar/ 27 MPa
- Water output: 30 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle cold water high-pressure cleaner B 170 T
- 1 x high pressure hose 20 m (DN8)

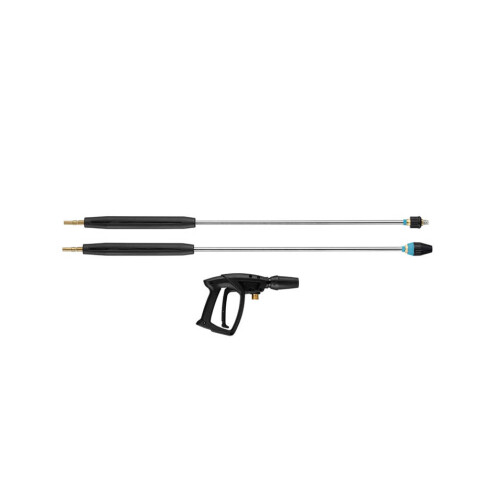

- 1 x M2000 safety shut-off gun - short
- 1 x lance with control nozzle, 05 nozzle size (turquoise), 25 ° spray angle, 1000 mm length
- 1 x lance with dirt killer, 05 nozzle size (turquoise), 1000 mm length
- 1 x water inlet filter
