Description

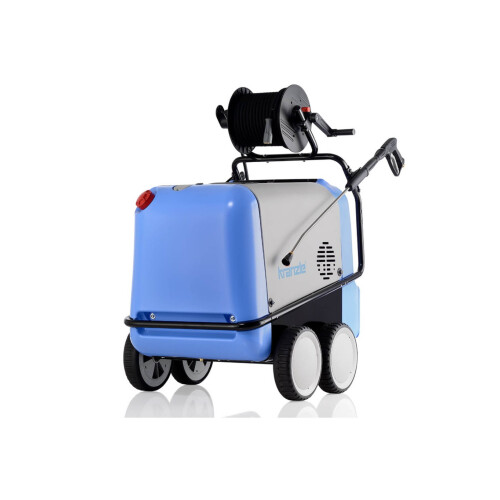

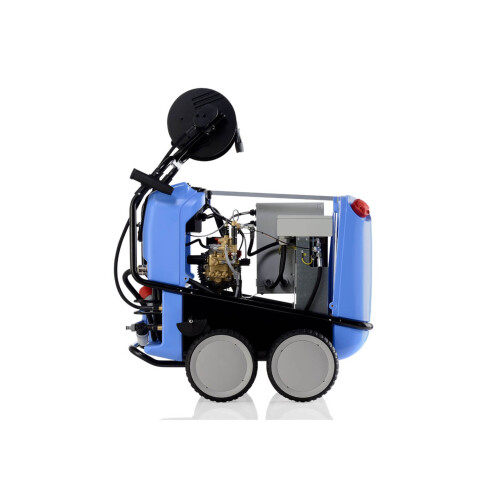

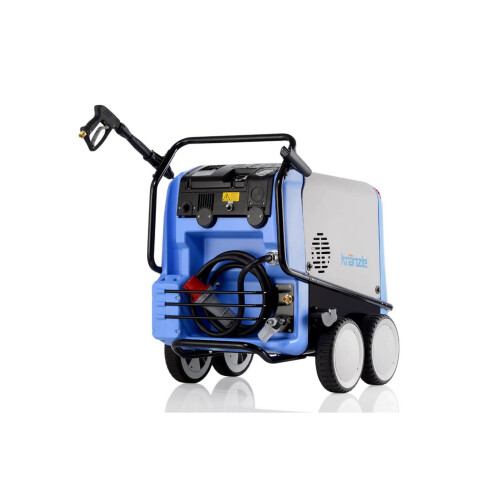

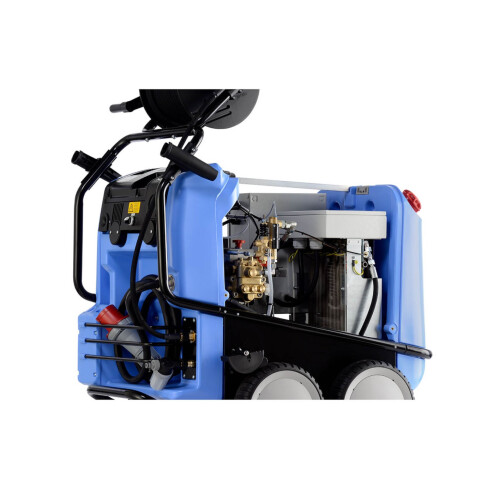

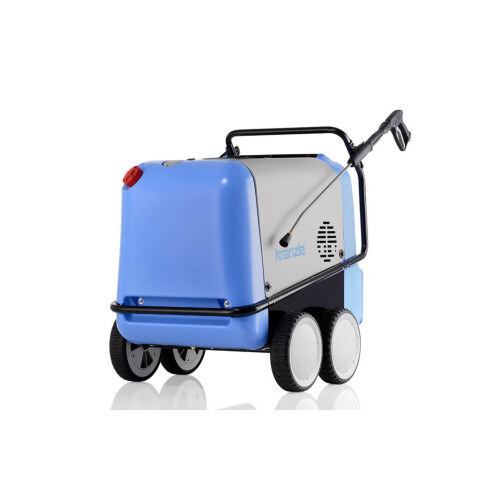

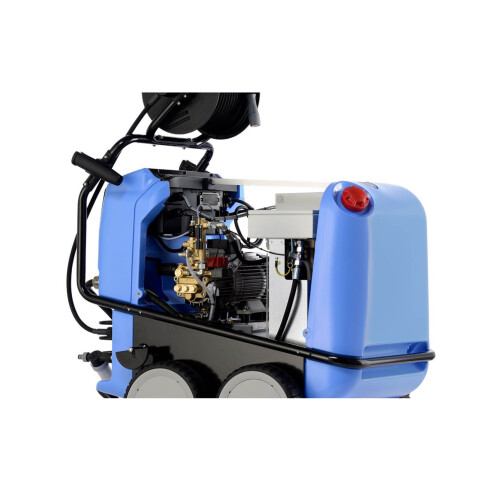

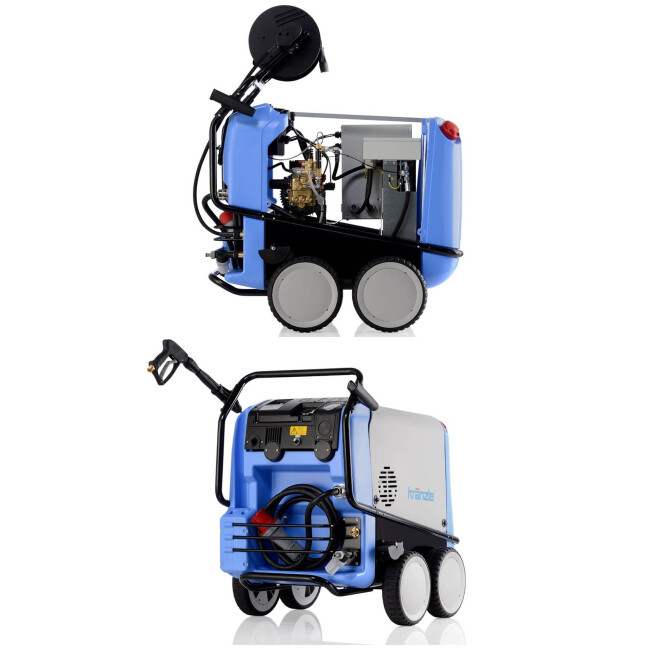

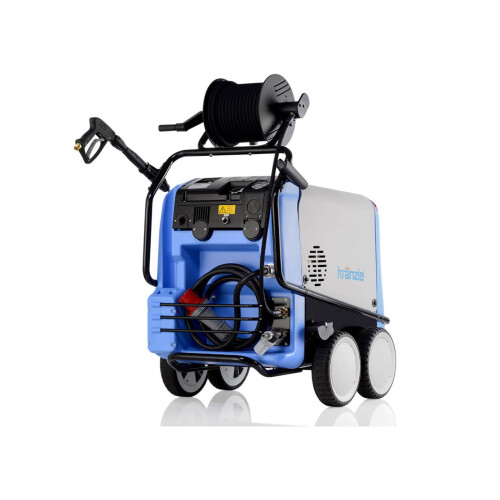

Kränzle high-pressure cleaner e-therm 603 M 36 with eco level and digital thermostat - nothing is missing here in terms of features. Temperature and heat output can be regulated to the exact degree via the digital thermostat and with the Eco level you can keep the maximum working temperature at 55°C and thus reduce power consumption by 50 %. The electrically heated instantaneous water heater enables temperatures of up to 80°C even in continuous operation and thus ensures a uniform water temperature, ideal for removing oil and grease. The electrically heated high-pressure cleaners are also used in closed rooms, clean rooms or in health and hygiene-sensitive areas. You can choose between the model with or without a hose reel. If you opt for the model with a convenient hose reel and folding crank handle, you can store your high-pressure hose here in a space-saving manner - naturally with Twist-Stop anti-twist protection. A special screw connection prevents the high-pressure hose from twisting and guarantees an undisturbed cleaning process. You will also find an integrated storage system on the all-terrain chassis, where the high-pressure gun and lance can be safely stored - of course, they also have the quick-change plug-in system. The operating hours counter also keeps an eye on everything at all times and determines the required service intervals.
Special features
- Electrically heated instantaneous water heater
- Eco level
- Emission-free cleaning with hot water up to 80°C
- Quick-change plug-in system
- All-terrain, large wheels with solid rubber tires and parking brake
- Total stop system with delayed motor shutdown
- Safety shut-off
- Flow monitoring
- 4-fold safety system with overload protection
- Pressure regulation
- Detergent suction
- Direct suction: 2.5 m suction height
- Water tank: 12 l volume
- Operating hours counter
Technical data
High-pressure cleaner:
- Working pressure: 30 - 150 bar / 3 - 15 MPa
- Water output: 10 l/min / 600 l/h
- Permissible overpressure: 170 bar / 17 MPa
- Motor speed: 1400 rpm
- Connection: 400 V / 3 ~ / 50 Hz / 55 A
- Power consumption: 38 kW
- Mains connection cable: 5 m
- Plug: CEE 32 A
- Dimensions (L/W/H):
1050 x 800 x 1015 mm (without hose reel)
1050 x 800 x 1450 mm (with hose reel) - Weight: 160 / 167 kg
Hot water:
- Heating input water: 50 °C
- Heating output: 36 kW
Safety shut-off gun:
- Inlet: M22x1.5AG
- Outlet: Plug-in coupling D12
- Working pressure: 250 bar/ 25 MPa
- Water output: 40 l/min
- Max. temperature: 150
Scope of delivery
- 1 x Kränzle high-pressure cleaner hot water e-therm 603 M 36 included:
- 1 x high pressure hose 10 / 20 m (DN8)
- 1 x safety shut-off gun Starlet, short
- 1 x lance with flat jet nozzle, 100 cm length, handle, 035 nozzle size (gold), 25° spray angle
- 1 x water inlet filter
